Universal Test Machine

QM100SE

Product Features

● Adhesive force test only (tape, rubber, film, adhesive, fiber)
● High-performance servo motor and reasonable price
● Automatic control with dedicated software
● Expandable adapter and grip exchange
● Measurement of tensile, compression, flexion, peeling, tear, sealing strength
Inquiry List




QM100SE is a universal UTM device that provides unshakable durability even in high load load measurement based on automatic control

and safety through servo motor and software.

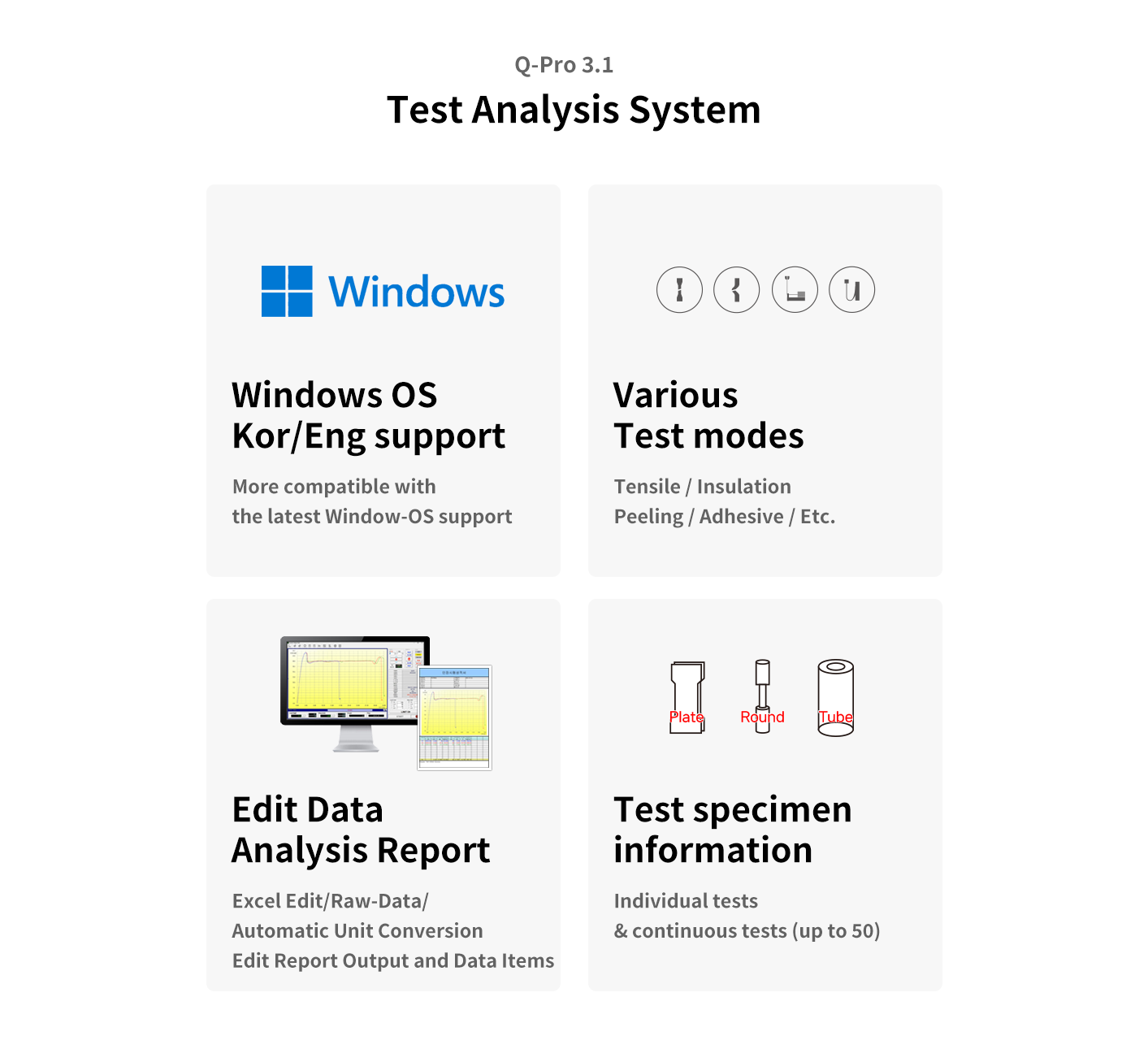

| Software Q-Pro 3.1



● Support for various tests
    (tension, tear, peeling, compression, bending, hardness, friction, repetition, maintenance, hardness test, etc.)
● Convenient sample information input function
    (automatic cross-sectional operation, continuous test measurement, automatic unit conversion, etc.)
● Various test speed settings (distance speed, load speed, multi-section speed, etc.)
● Data editing functions (excel support, parameter editing, raw data numerical view, interval setting, etc.)
● Real-time monitoring (communication, overload, safety, measurement)
● Remote Control Diagnostics and Remote Training Support
● Extensometer, strain gauge, and environmental chamber interlocking function




Test Method



Application





Specifications

MODEL QM100SS QM100S QM100SE
Capacity 5, 10Kgf 5, 10, 20, 50, 100, 200Kgf 20, 50, 100, 200Kgf
Crosshead Speed 0.1 ~ 600mm/min
Availability Travel (Non Grip) 450mm 850mm
Operating Travel 350mm (Excluding Mini Shear Grip) 650mm (Excluding Film Grip)
Distance from the Columns Ø120
Indicator LCD Graphic Display LCD Graphic Display 7" Color LCD Touch Screen
Raw Data 150 ~ 240p/se 150 ~ 240p/sec 50 ~ 120p/sec
Load Resolution < 0.002% < 0.01% < 0.02%
Safety Device Emergency S/W, Stroke & Load Limit, UP/Down Limit, Auto & Return Set Memory, Data Output (RS232C Type)
Dimensions 450(W) x 375(D) x 906(H)mm 490(W) x 500(D) x 1290(H)mm
