Home > PRODUCT > Impact Tester
The QM720FD is an impact test device for measuring impact resistance and toughness of plastic films according to ASTM D1709
and ISO 7765 standard free-fall dart methods A and B, enabling additional differential sets
and dart fabrication according to standards or internal customized requirements.
■ Standard : ASTM D1709, ISO 7765-1-1988, JIS K7124-1

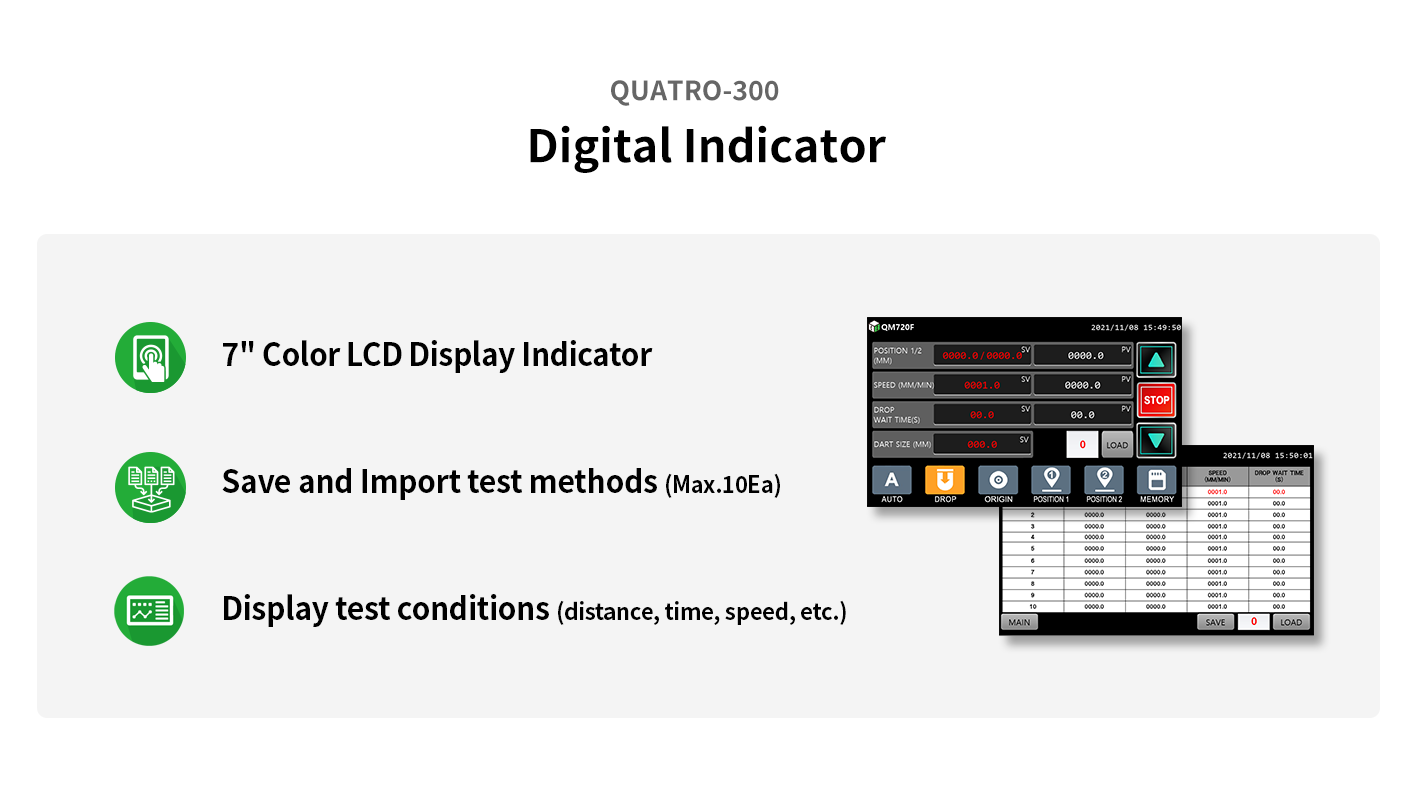

| Digital Indicator QUATRO-300
● Color LCD Touch Screen Display
● Test Method Memory
● Display test conditions (distance, time, speed)
Specifications
| MODEL | QM720FD (A Type) | QM720FD (B Type) | |||
|---|---|---|---|---|---|
| Test Method | Method A | Method B (Option) | |||
| Test Range | 50~2000g | 300~2000g | |||
| Stroke | Max. 1500mm | ||||
| Dart Head | Ø38.1 | Ø50.8 | |||
| Load Weight | 5g, 15g, 30g, 60g | 15g, 45g, 90g | |||
| Dimensions | 900(W) x 550(D) x 2050(H)mm | ||||
| Standard | ASTM D1709, ISO 7765-1-1988, JIS K7124-1 | ||||
