Home > PRODUCT > Film

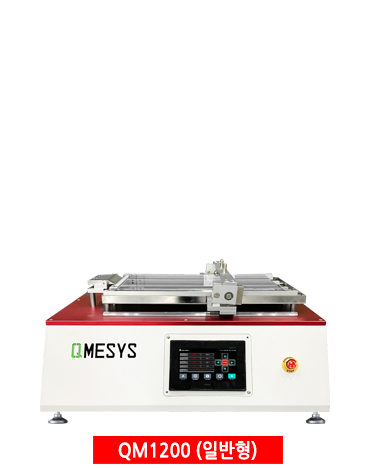

Automatic Coater
QM1200
Product Features
● Auto-go-back system after each test
● Test method Saving option
● Changeable bar coater adapter
● Adjustable pressuring the load accords to the viscosity
● Fixed test specimen and vacuum plate to emit the solvent (Option)
● For Heating only purpose (Option)
● Test method Saving option
● Changeable bar coater adapter
● Adjustable pressuring the load accords to the viscosity
● Fixed test specimen and vacuum plate to emit the solvent (Option)
● For Heating only purpose (Option)
This product equipped with various bar coaters and applicators to perform constant thickness of paint coating on the test-specimen.
■ Standard : KS T 1028,T 1056
| Accessories For QM1200 (Option)
| Bar-Coater Table
Specifications
| MODEL | QM1200 | QM1200S | |||
|---|---|---|---|---|---|
| Motor | BLDC Motor | Servo Motor & Ballscrew & Dual LM Rail System | |||
| Display | LED Display | 7 | |||
| Speed Range | 20 ~ 100mm/sec | 1 ~ 1200mm/min (주문제작) | |||
| Bar Coater Holder | 1 System | ||||
| Plate Size | 300 x 490mm (Themal Glass) | 320 x 500mm (AL&Themal Glass) | |||
| Standard | KS T 1028,T 1056 | ||||
| Dimensions | 700(W) x 520(D) x 370(H)mm | 770(W) x 625(D) x 410(H)mm | |||
| Function | Speed & Stroke Memory (Memory 1, 2) | SV/PV (Stroke, Counter), Method memory, Origin Zero | |||
| Option | Vaccum-Plate, Heat-Plate | Speed, Barcoater-Rotator, Vaccum-Plate, Heat-Plate | |||
