Box Drop Impact Tester

QM720B

Product Features

● Gripper Adjustable angle gripper
● Automatic distance input system
● Customizable options (Height, Size, Weight)
● Auto reset to the starting point and Auto-calibration
● Multi-safety system. (Door-lock, Gripper lock, and sleep mode)

Inquiry List

Description
Specification
Video
Association

This product is intended to test and evaluate the intactness and the degree of impact the box can withstand by dropping them

at a set height. It also features a digital distance sensor rotational angle modifiable gripper to measure the vertical and deflection drop impact of the package boxes.

Specifications

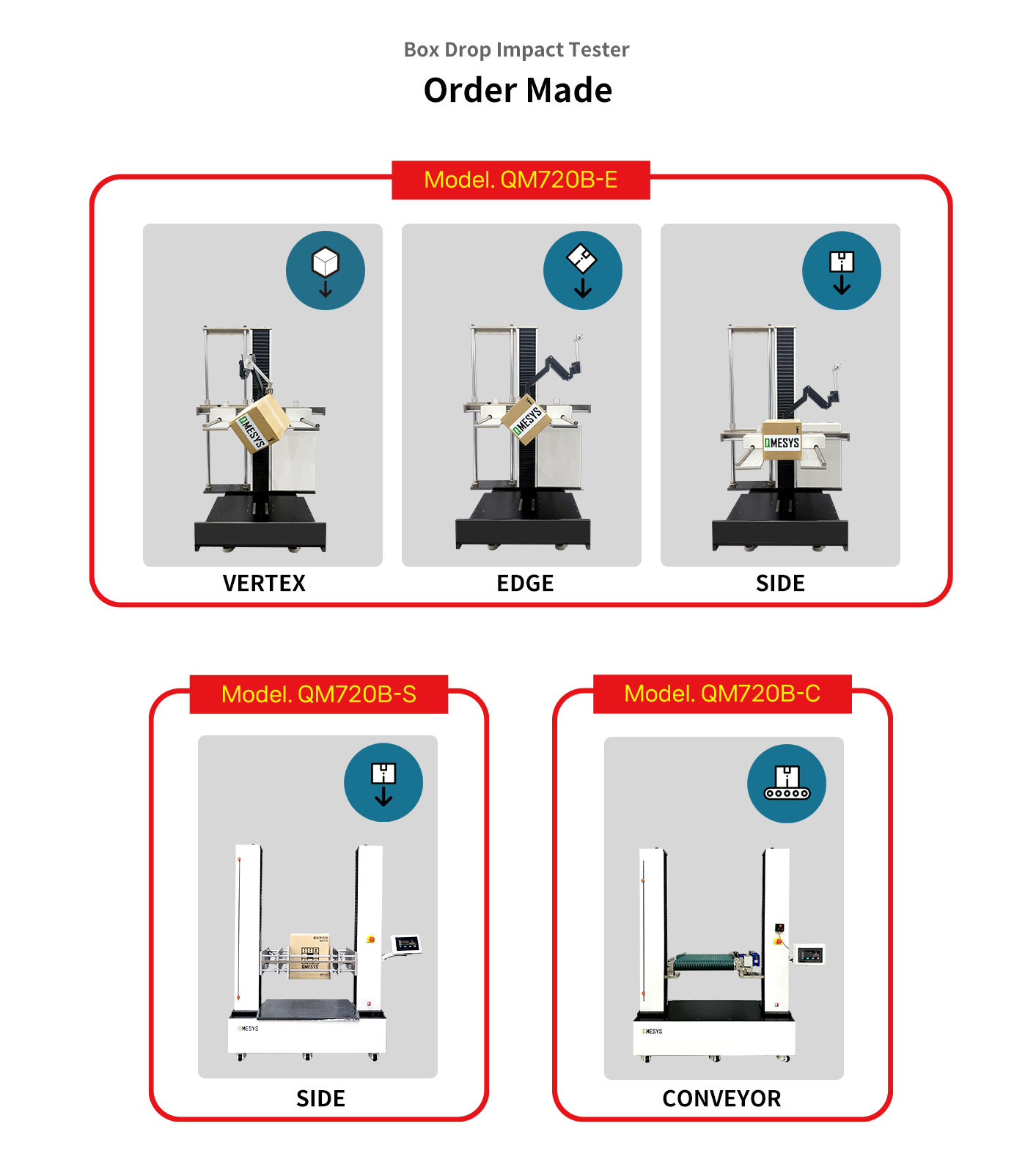

MODEL	QM720B-E	QM720B-S	QM720B-C
Stroke	Max. 1300mm	Max. 1300mm	Min. 450mm ~ Max. 1600mm
Speed Range	0 ~ 1000mm/min	0 ~ 1000mm/min	0 ~ 1000mm/min
Distance Resolution	± 0.01mm	± 0.01mm	± 0.01mm
Test Method	Vertex, Edge, Side	Side	Side (Conveyor Angle : ± 30˚)
Dimensions	1500(W) x 1250(D) x 2110(H)mm	1450(W) x 700(D) x 2110(H)mm	1500(W) x 1100(D) x 2110(H)mm
