PRODUCT
QM230H

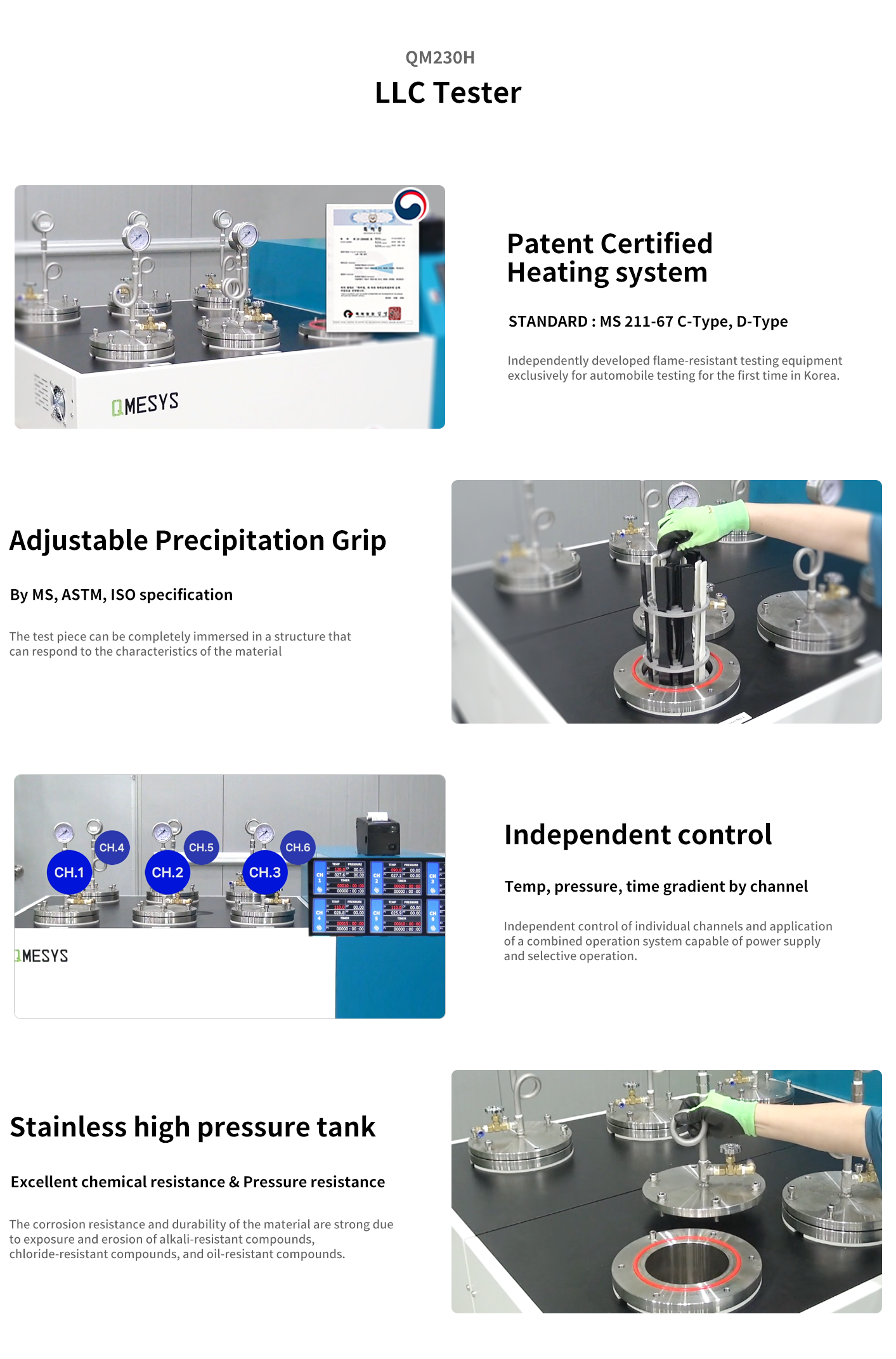

Product Features
This product measure high temperature and pressure heat resistance and aging of automobile parts
by depositing test specimen in calcium chloride, antifreeze, oil, etc. in accordance to MS (Hyundai Motor) Test Method.
Analyze the life cycle and aging characteristic of the materials due to corrosion and durable aging deformation.
Internal stainless-steel body with built-in pressure and temperature sensor record and measure the condition under exposure of the test specimen in real time.

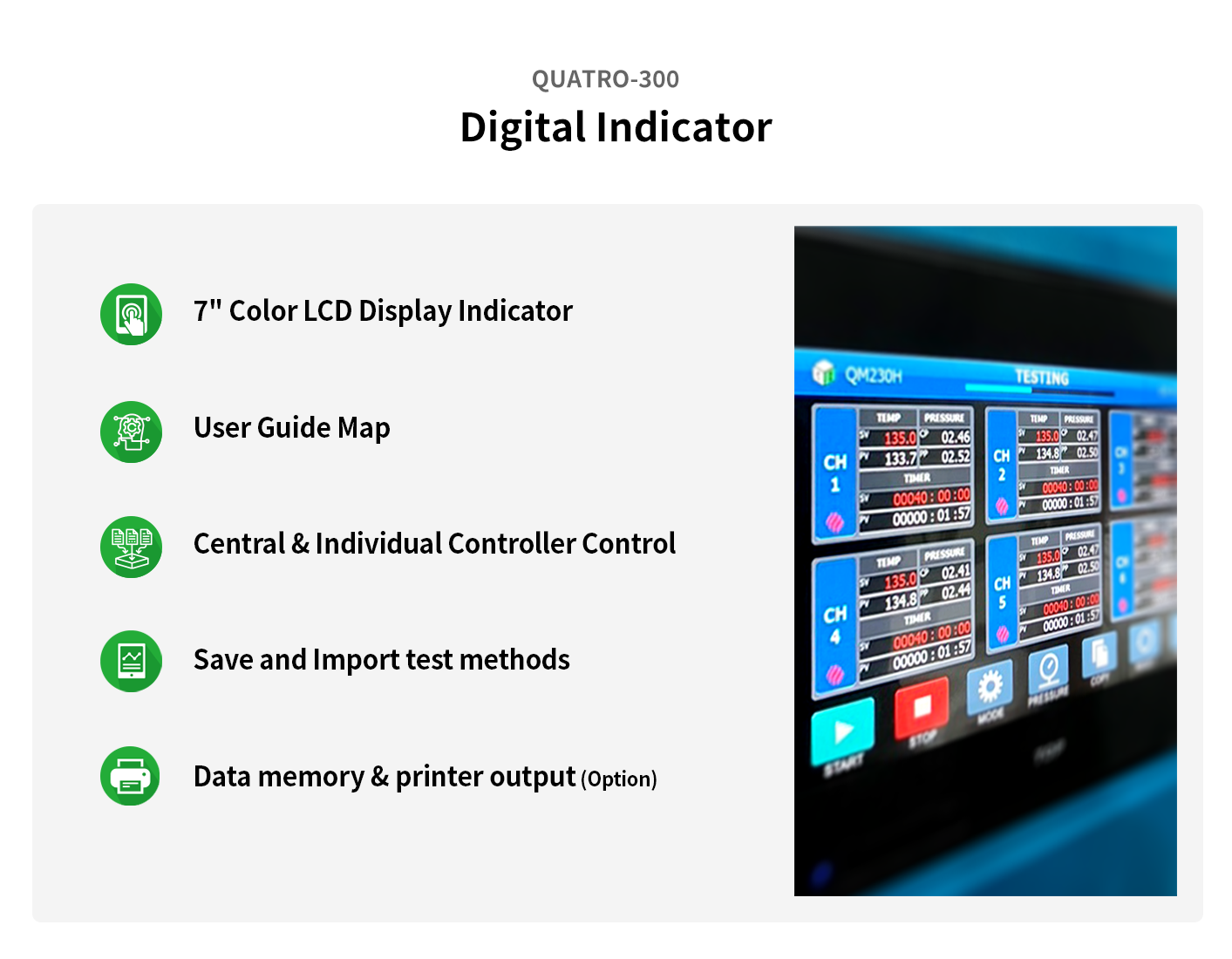

| Digital Indicator QUATRO-300-2.0

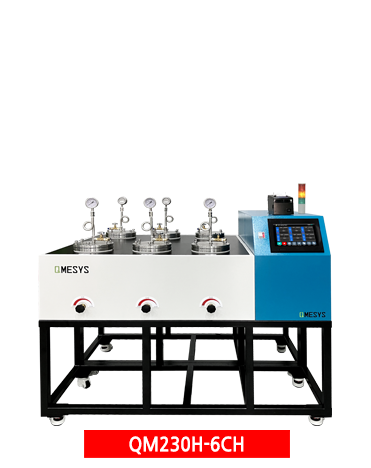

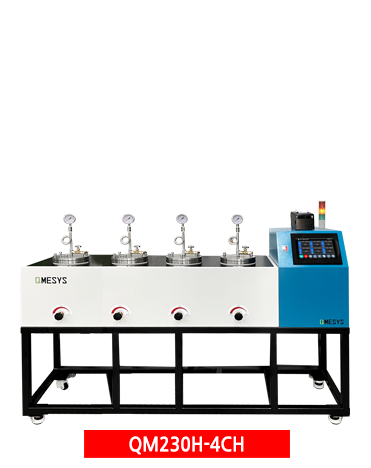

MODEL | QM230H-2CH | QM230H-4CH | QM230H-6CH | ||
---|---|---|---|---|---|
Sample Channel | 2 Channel | 4 Channel | 6 Channel | ||
Temp. Range | RT ~ 150℃ | ||||
Tank Capacity | Max. 2ℓ per set | ||||
Pressure Range | Max. 5Kgf/㎠ | ||||
Display | 10" Color LCD Touch Screen Type | ||||
Dimensions | 920(W) x 450(D) x 760(H)mm | 1720(W) x 450(D) x 760(H)mm | 2300(W) x 450(D) x 760(H)mm |
