QM100TM is a universal material tester for heavy loads (1000 Kgf) suitable for sample measurement of plastic, rubber, urethane,

and composite materials.

The design applied with a special monocoque structure improves weight reduction and durability, allowing measurement up to a maximum load of 1,000Kgf

even at a maximum interaxial distance of 460mm. The multi-purpose material test equipment, which is suitable for measuring high elongation products

with a maximum transfer distance of 950mm, is an all-in-one structure that makes it easy to move and install due to weight reduction.

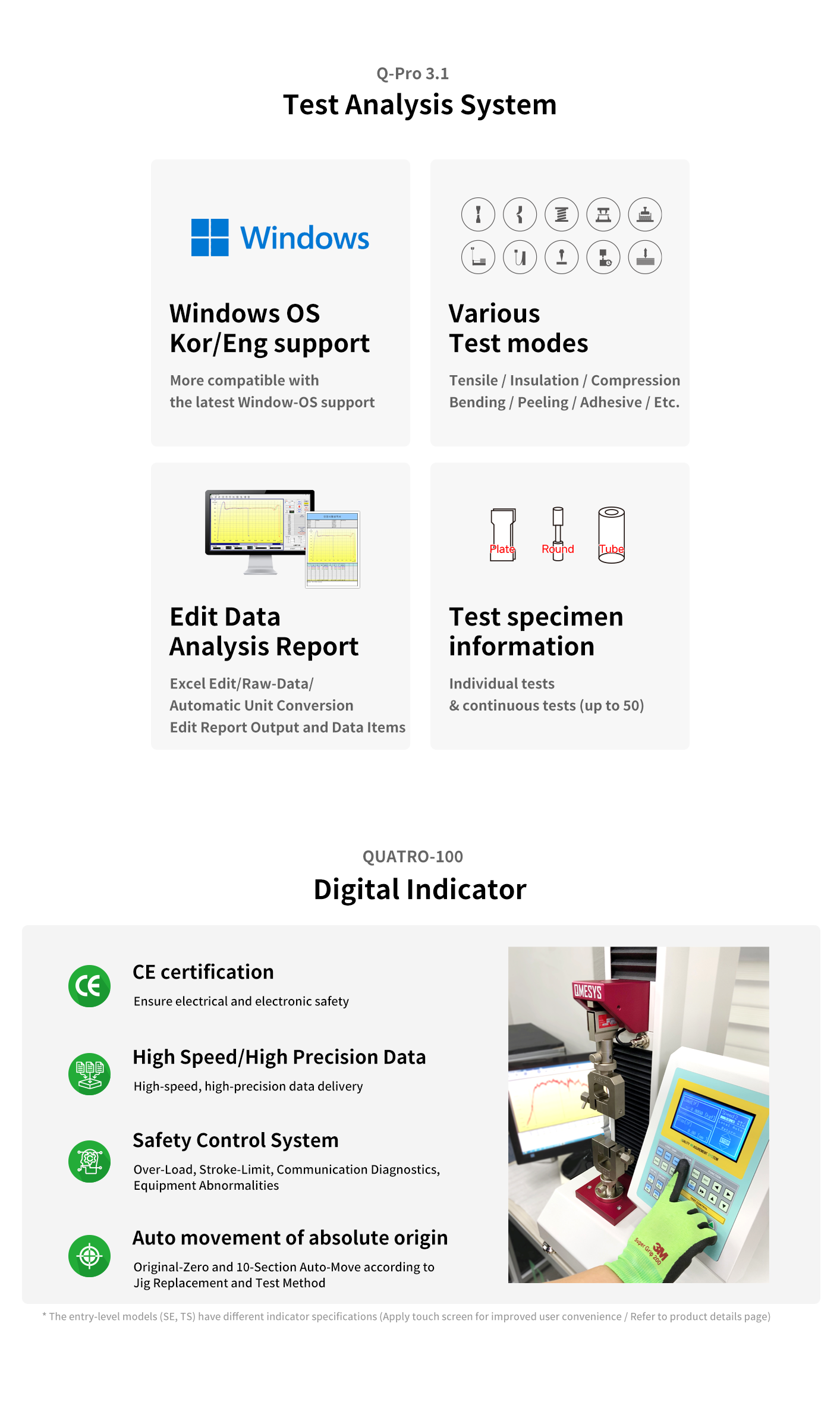

| Digital Indicator QUATRO-100

● CE Certification

● High-speed, high-precision data measurement (Raw Data 180-240p/sec)

● Equipped with a high-precision Micro CPU (1/10,000 resolution)

● Standalone Controllers

● Built-in autonomous safety features

● Test speed storage and automatic test function

● Strain gauge expansion port (Option)

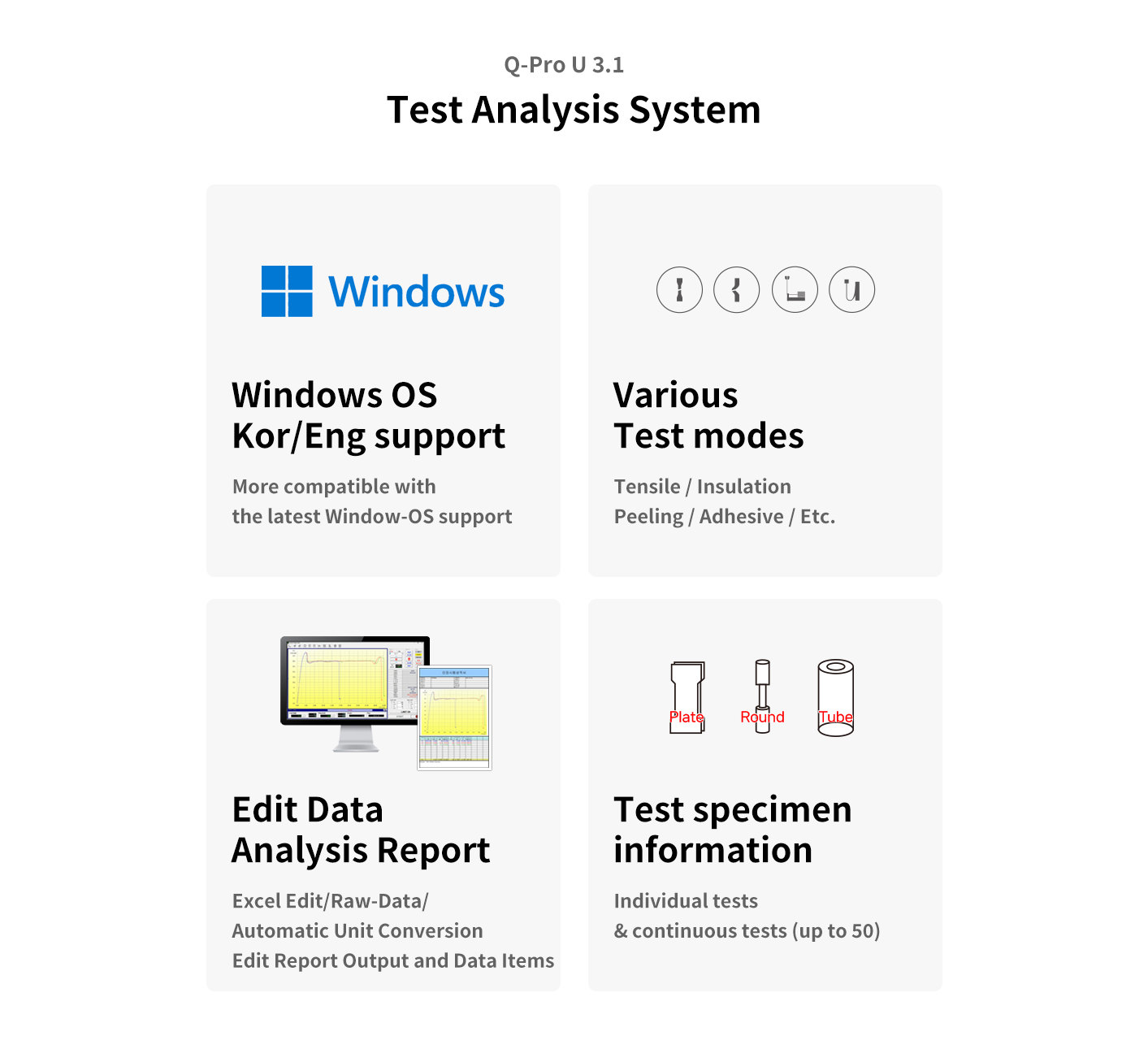

| Software Q-Pro 3.1

● Support for various tests

    (tension, tear, peeling, compression, bending, hardness, friction, repetition, maintenance, hardness test, etc.)

● Convenient sample information input function

    (automatic cross-sectional operation, continuous test measurement, automatic unit conversion, etc.)

● Various test speed settings (distance speed, load speed, multi-section speed, etc.)

● Data editing functions (excel support, parameter editing, raw data numerical view, interval setting, etc.)

● Real-time monitoring (communication, overload, safety, measurement)

● Remote Control Diagnostics and Remote Training Support

● Extensometer, strain gauge, and environmental chamber interlocking function

Test Method





Specifications
