Auto Adhesive Tester

QM2000R

Product Features

● Auto-go-back system after each test
● Test method Saving option
● Expendable Roller Clamp (Max. 4Ch)
● High precision standard Roller (2Kg, 850g/Option))
● High loaded and Wide Roller (Max.300mm/Customized)

This product measures peel strength and adhesive force by adhering a tape or sheet on the SUS plate with constant load

and prescribed speed by highly precise BLDC motor and the digital control system.



■ Standard : KS T 1028,T 1046,T 1056

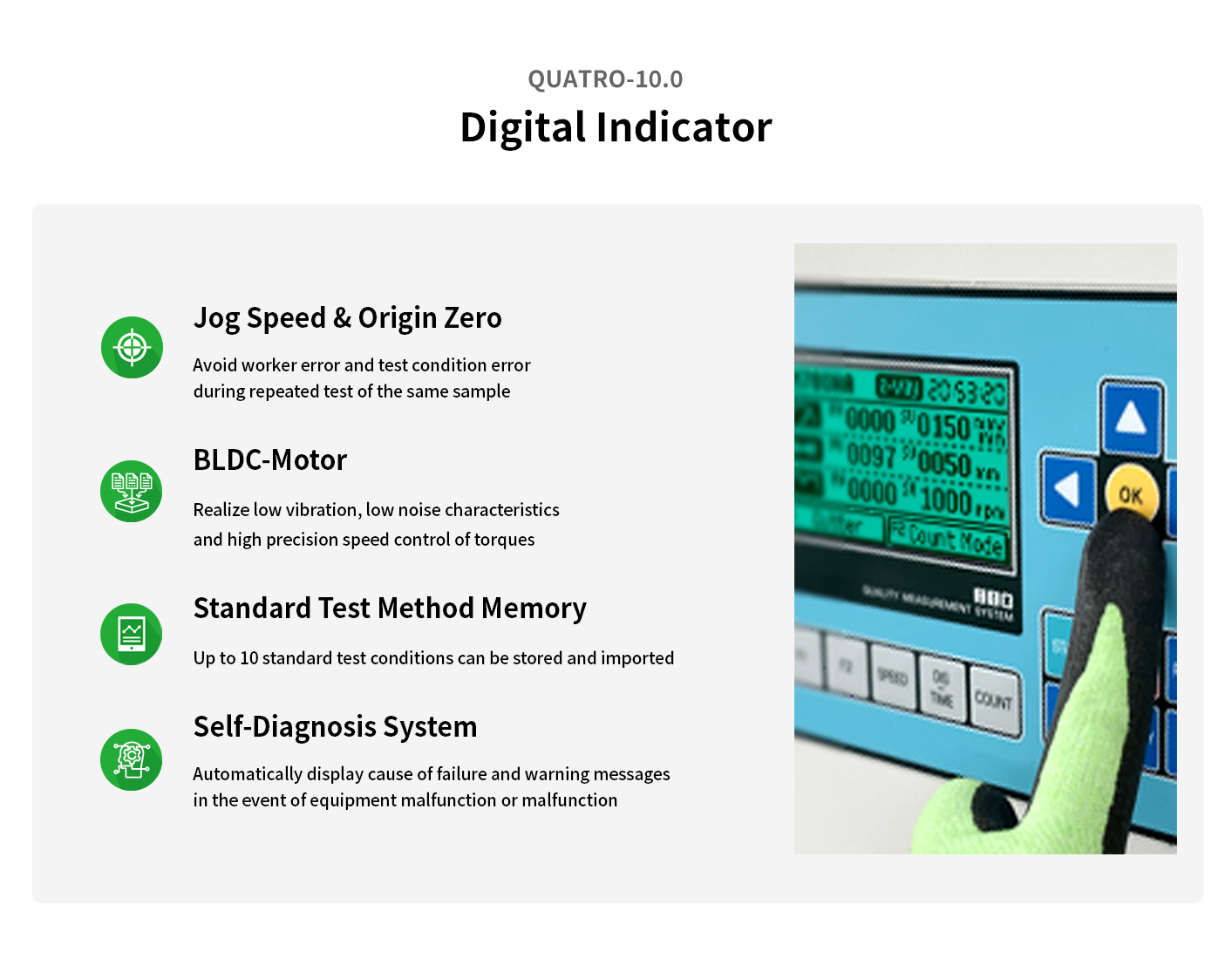

Digital Indicator QUATRO-10.0




● Quatro BLDC System
● LED Digital Display
● User Guide Map
● Automatic test termination and return to origin
● Test method program and storage function
    (speed, distance, frequency, time, direction)

Specifications

MODEL QM2000R
Sample Channel Max. 4Channel (2kg 기준)
Speed Range 5 ~ 600mm/min
Stroke Range 300mm
Standard KS T 1028,T 1046,T 1056, ISO 2409
Dimensions 380(W) x 550(D) x 300(H)mm
